Allow your HotEnd to print at higher temperatures with better accuracy and easier assembly with the E3D PT100 sensor and amplifier board bundle.

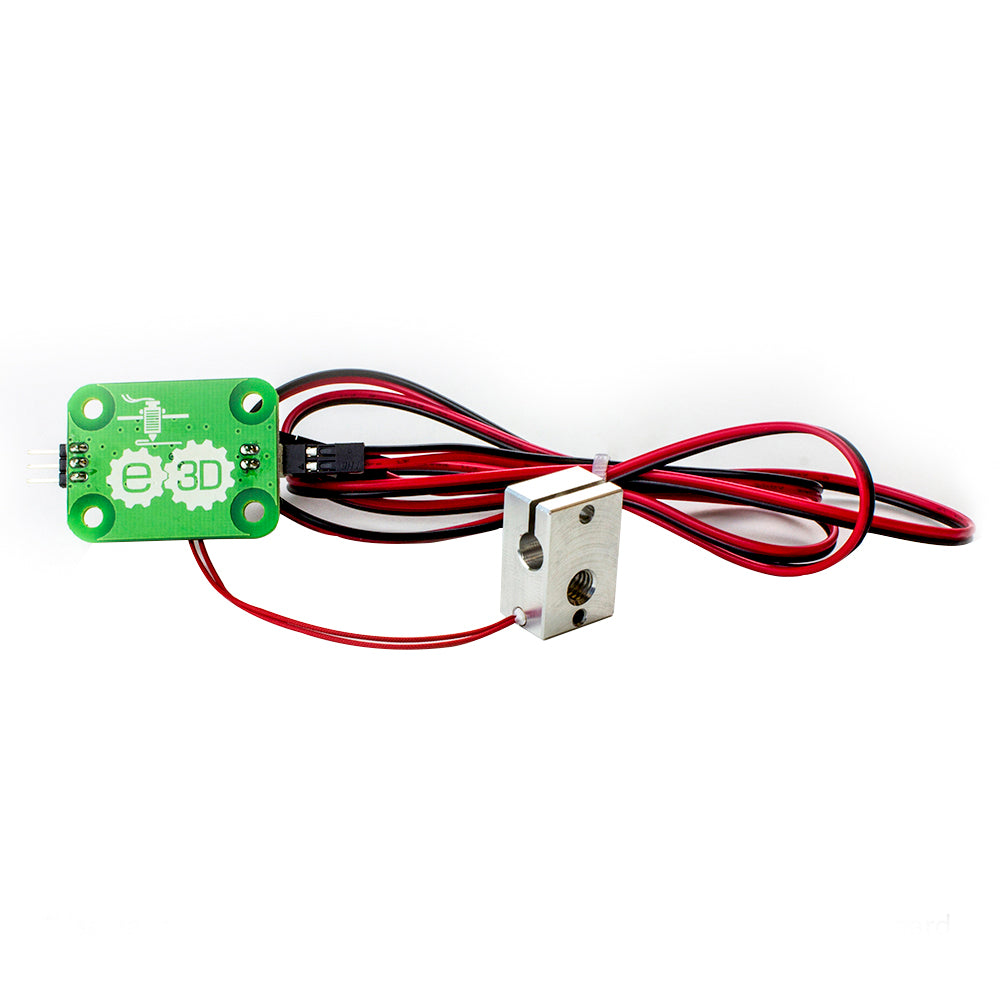

PT100 upgrade kit
The E3D PT100 amplifier board amplifies the signal from the PT100 to a voltage level that your printer controller can read easily and accurately.
Our amplifier board is inspired by the circuit design from the Ultimainboard V2 controller board, but with enhanced filtering for robust and accurate temperature measurement.
This means it’s compatible with temperature sensor '20' in Marlin firmware. For more information regarding how to set up the amplifier board please see our guide
- Max temperature: 500°C
- Cartridge diameter: 3 mm
- Cartridge length: 15 mm
- Cable length: 50 mm
- Cable colour: red
- Connector type: Molex Microfit 3.0

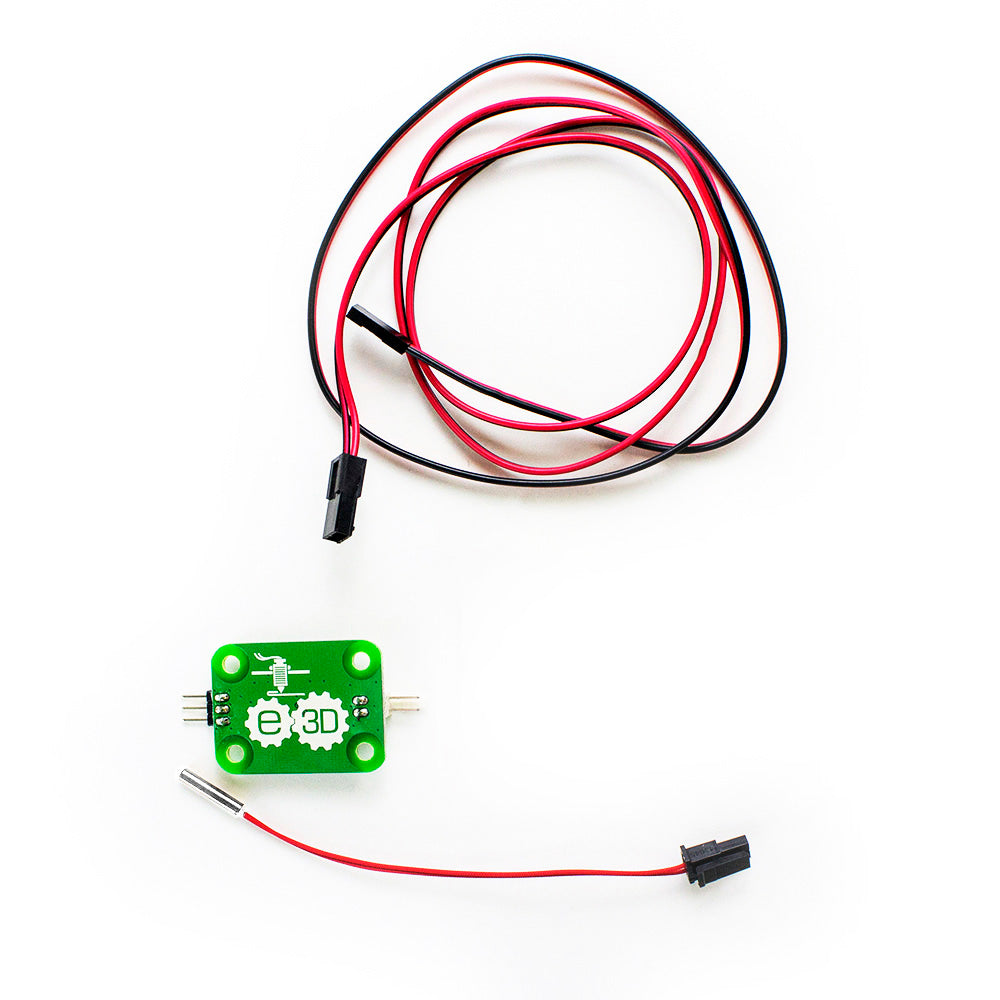

- 1 x PT100 temperature sensor
- 1 x Extension cable
- 1 x Amplifier board
