Revo Voron PZ Probe™ Coldside

Revo Voron PZ Probe™ Coldside

Key Features

Key Features:

  • Total Mass: 36g
  • Compatibility: Voron Stealth burner
  • Filament Diameter: 1.75 mm
  • Maximum ambient temperature: 75°C

£60.00 GBP
£60.00 GBP
Sale Sold out
Taxes & Shipping calculated at checkout.
  • Friendly Support
  • 6 Month Guarantee
  • Fast Global Shipping
SKU: PIEZO-VORON-COLD
Country of Origin: GB
View full details

Quick Navigation

Description Documentation What's in the box Printer Compatibility FAQ's

Description

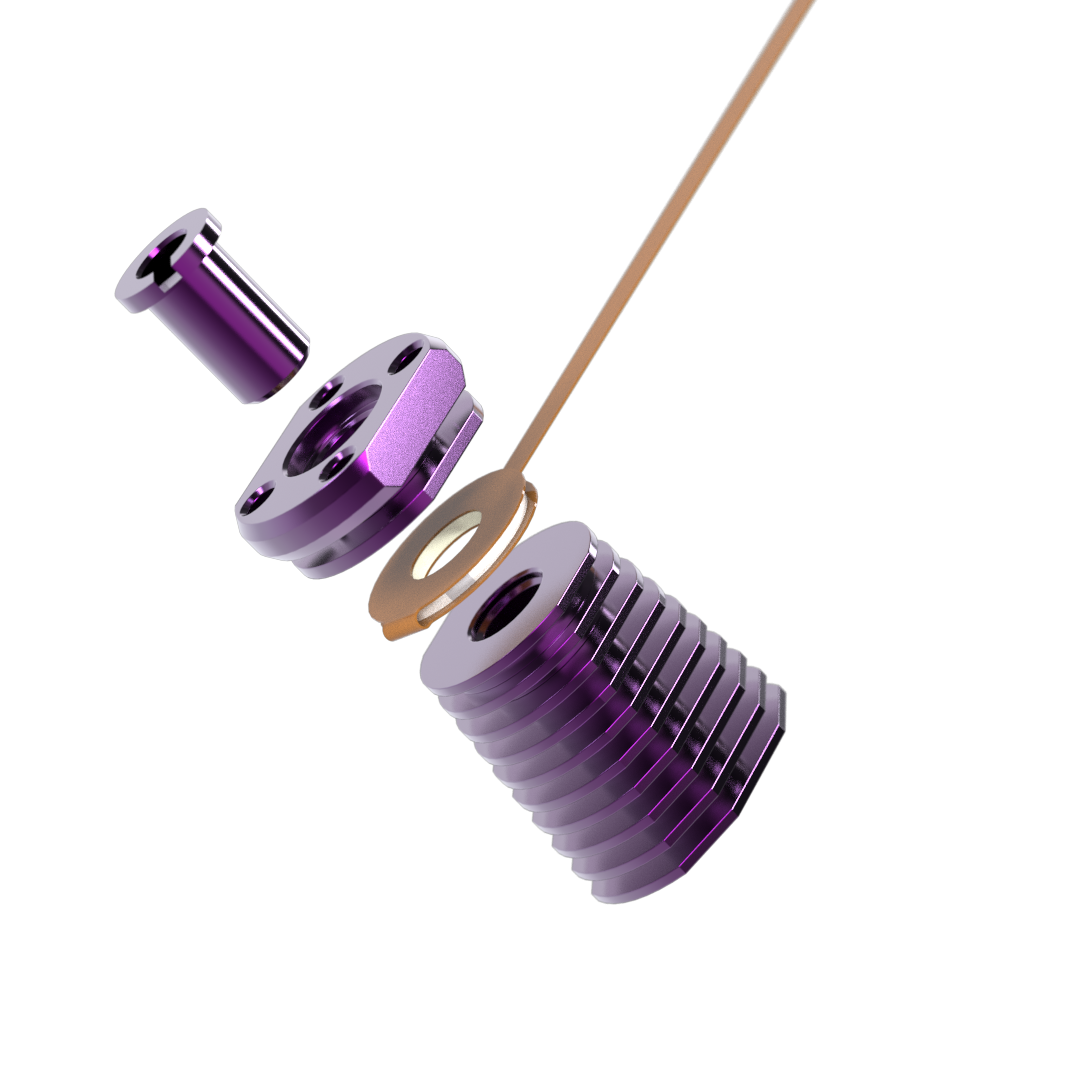

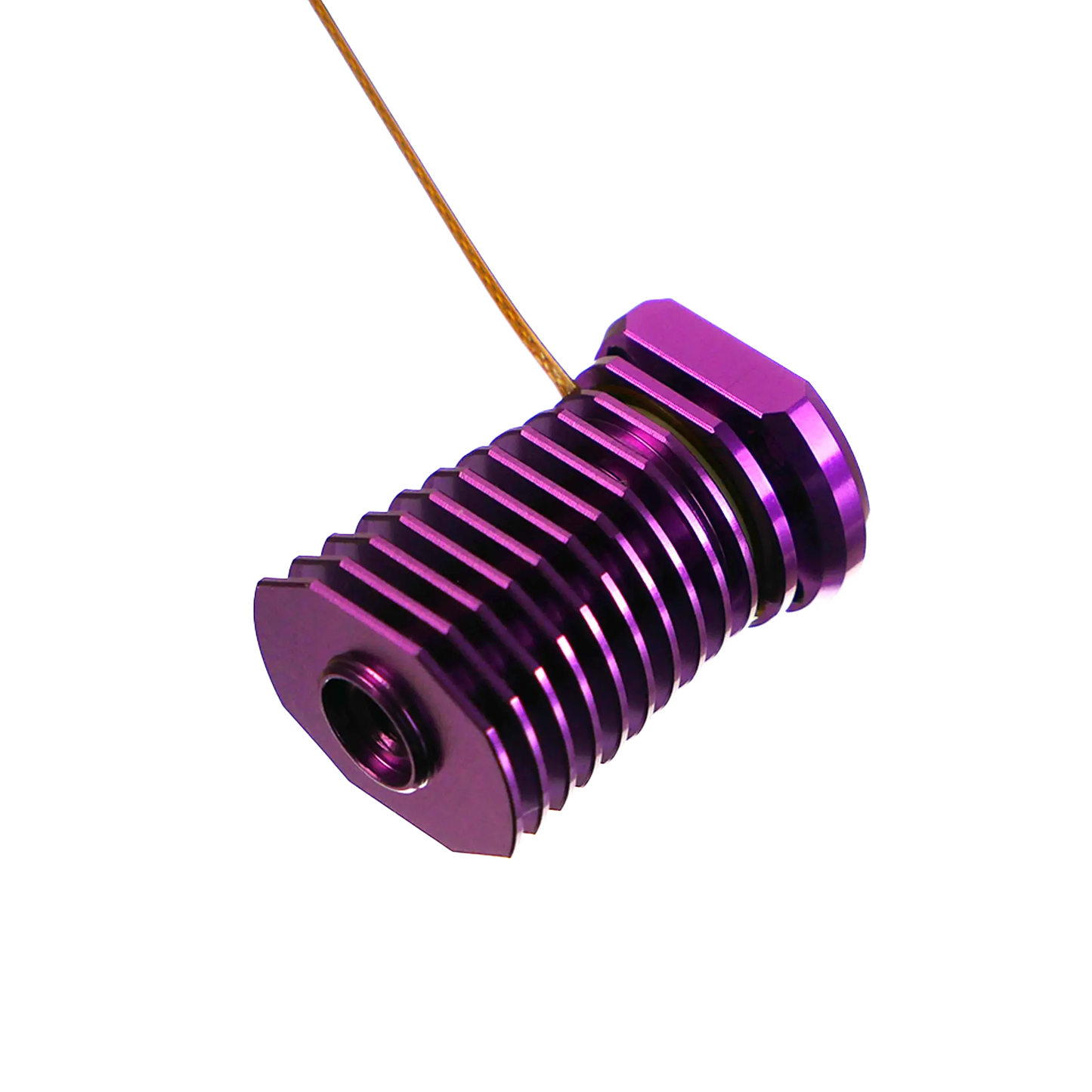

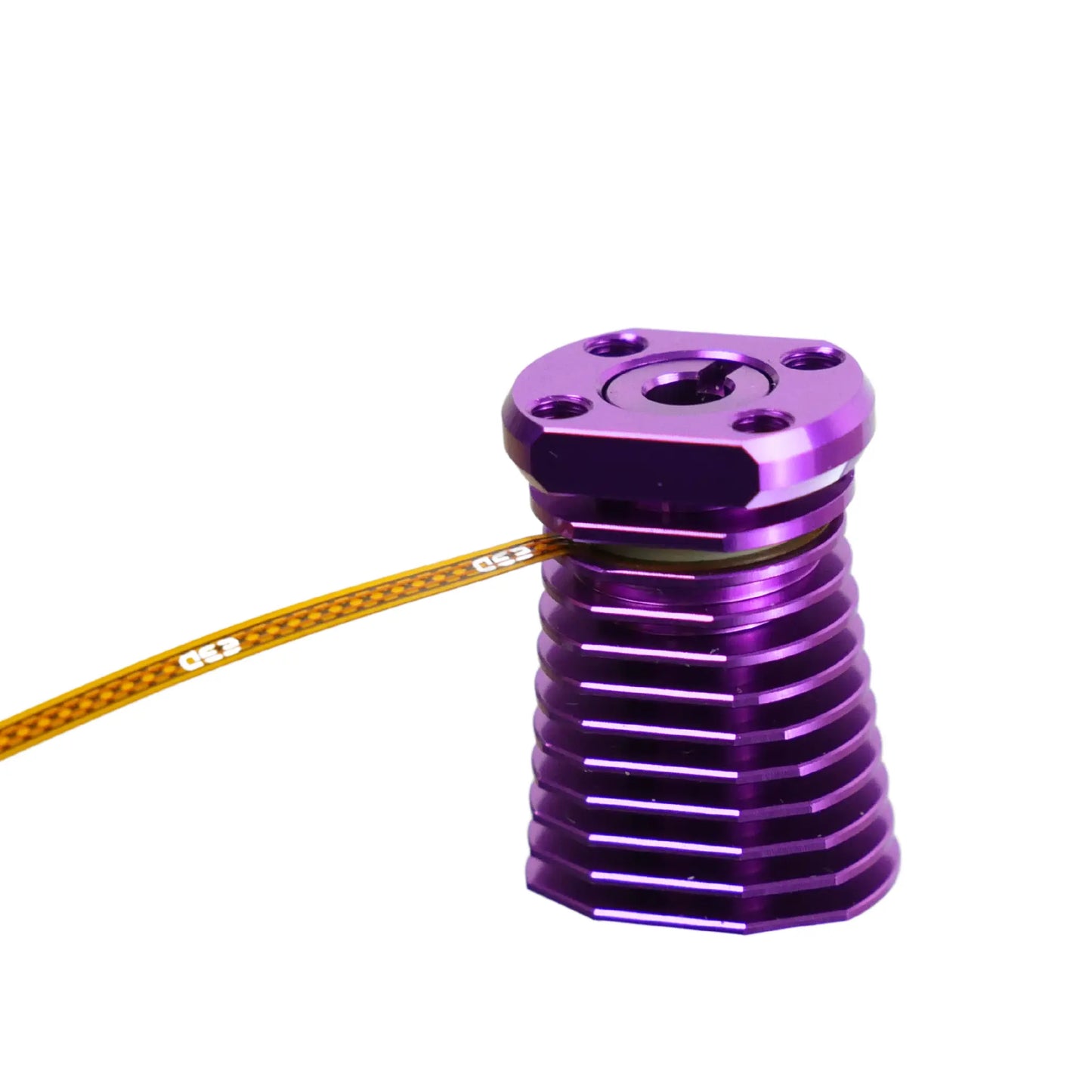

Designed specifically for use with the Voron Stealthburner, Revo PZ Probe™ Voron integrates a bed levelling system inside a Revo Voron Heatsink, transforming your Revo nozzle into a bed probe – all within the same form factor.

Easy PZ Probing

PZ Probe is a piezoelectric element which converts vibrations into electrical signals and is triggered upon contact between the nozzle and the print bed. With PZ Probe you only need to calibrate your z offset once to accommodate for flexibility in your motion system, after that simply screw in (with only your fingers) a new nozzle, and PZ Probe does all the hard work for you…. Easy PZ!

Lightweight

Weighing in under 40g including the heatsink & cables, PZ Probe ensures that this set-up is significantly lighter than any other Stealthburner tool head and bed levelling sensor combo.

Perfect first layer

Using the Revo nozzle as probe ensures a precise bed levelling mesh, leading to a clean first layer, the pre-requisite of any successful 3D print.

Easy Integration

The only new part to add to your existing Stealthburner set-up is a Flat Flex Cable, read more here about this super simple step. Check out SteveBuilds mount here, note that you will need 2 extra printed parts if you opt for this mount.

Read more technical information in our blog.

Compatibility: Revo PZ Probe Voron is compatible with Voron Stealth burner.

Please note: Do not exceed 5V. Make sure to read the technical datasheet in its entirety prior to installing the PZ Probe.

Pair with your perfect Hotside

Pair your Revo Voron Coldside with one of our carefully curated Hotside packs to ensure your printing needs are met, straight out of the box. All Hotside packs come with your heating and sensing elements plus a variety of nozzles for you to start quick swapping with. Select from the following options:  

Starter - Ideal for users printing at standard speeds with PLA, PETG and ASA  

High Flow - Perfect if you're looking to push your Voron printer's print speed capabilities to the limit  

High Flow X - All the benefits of the High Flow pack with the bonus of abrasive resistance for printing with fibre filled materials  

Genius 400 - A hobbyist’s playground: high temperature, high flow and abrasive printing in one kit

Genius Metal - The ultimate hobbyist’s playground

Documentation

Revo Voron PZ Probe Datasheet

What's in the box

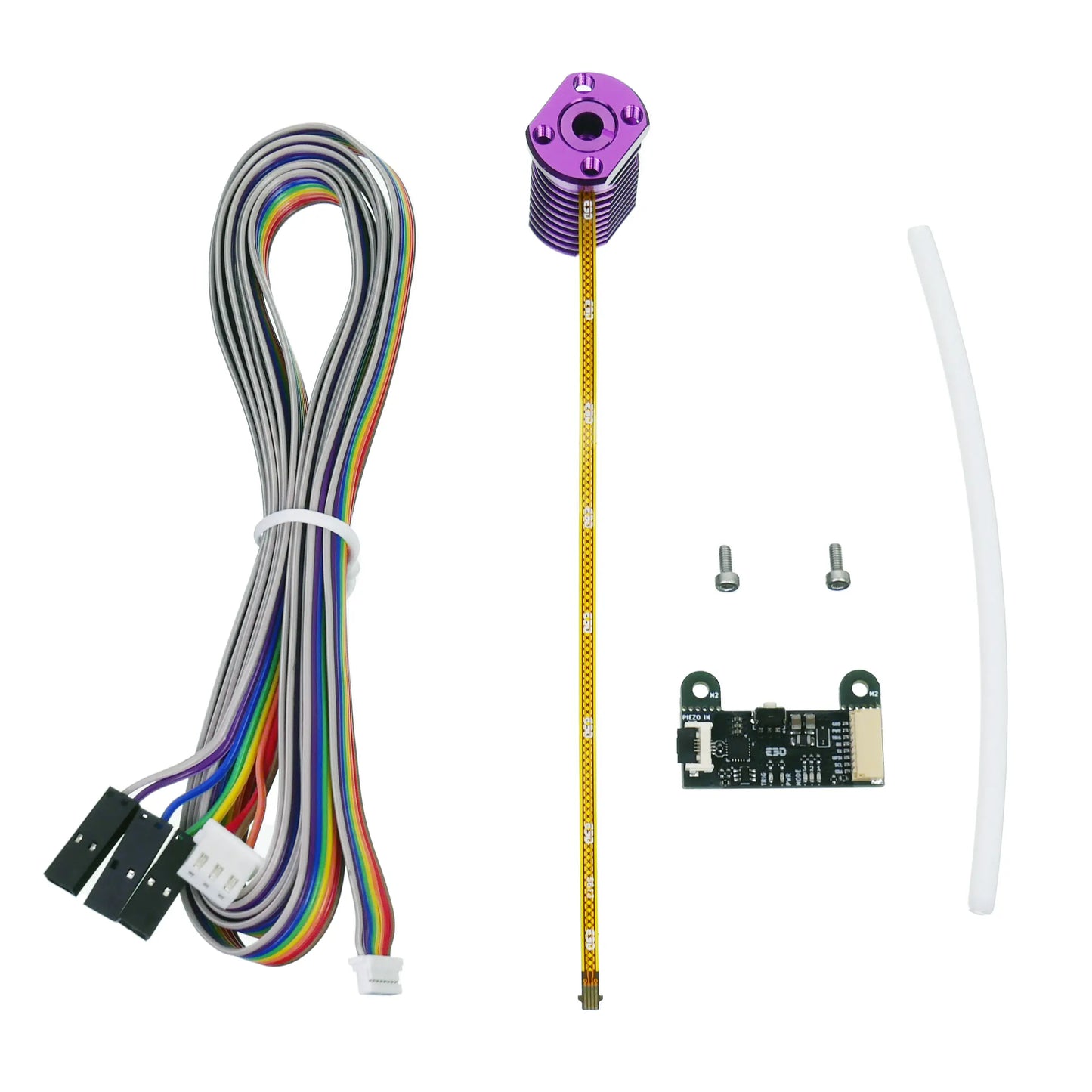

Kit includes:

  • 1 x Revo Voron Heatsink with an integrated PZ Probe
  • 1 x PZ Probe Board
  • 1 x Extension cables
  • 2 x M2 Board Mounting Screws
  • 1 x Bowden tubing

Printer Compatibility

  • Voron V0
  • Voron 2.4

Frequently Asked Questions

Q: How does the PZ Probe differ from traditional bed leveling sensors?
A: Unlike traditional sensors that measure proximity, PZ Probe uses the actual nozzle to detect the bed surface, providing unmatched precision and eliminating offset errors common with side-mounted sensors.

Q: Do I need to recalibrate Z-offset after changing nozzles?
A: No! One of the biggest advantages of PZ Probe is that you only calibrate once. After that, you can swap nozzles freely without recalibration.

Q: Which Hotside pack should I choose?
A: For standard materials (PLA, PETG, ASA) at normal speeds, choose Starter. For high-speed printing, select High Flow. For abrasive filaments, choose High Flow X. For maximum versatility, including high-temperature materials, choose Genius 400 or Genius Metal.

Q: Is installation difficult?
A: Installation is straightforward, requiring only the addition of a Flat Flex Cable to your existing setup. Detailed instructions are included, and our support team is available to assist if needed.
